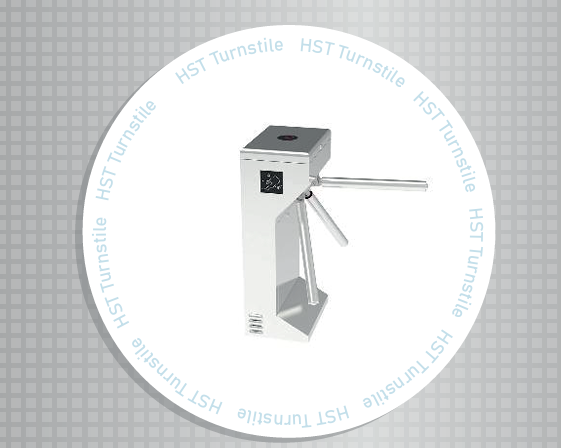

HST Turnstile VT1000
VT1000
Technical Parameter
Size: 980*330*420mm
Material: Top 1.2mm + Body 1.0mm SUS304
Pass Width: 500-550mm
Passage direction: Single directional / Bi-directional
Pass rate: 30-35 persons/minute
Operating time: 0.2 seconds
Power input: AC100-240V, 50/60HZ
Working voltage: 24V
Working humidity: 30%~95%
Working temperature: -40°C~+70°C
Working environment: Indoor/outdoor
Communication interface: RS485, Dry contact
Mechanism: Mould machine core + mould bracket + Domestic solenoid
VT1000
Description
All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries. The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstile are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
Features & Benefits
– Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
– Full-auto mode: The passenger pushes the arm at a little strength after reading card and the arm will rotate automatically.
